4K Auto-Tracking PTZ Camera by Al Vision Digital

4K Auto-Tracking PTZ Camera

A professional 4K Ultra HD PTZ camera with intelligent speaker & presenter tracking, designed for modern conference rooms, classrooms, and broadcast environments.

Make in India

BIS Certified

ISO 9001:2015

GEM Listed

1/2.8” Sony CMOS Sensor (8.3 MP)

10X Optical Zoom with Auto Focus

Intelligent Tracking System

Built-in 4-Mic Array (10m Pickup)

Wide Pan-Tilt Range with Presets

USB & HDMI Output

Get Quote Download Brochure Request Demo

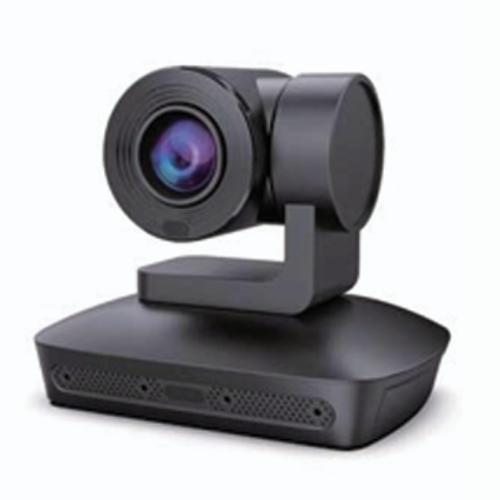

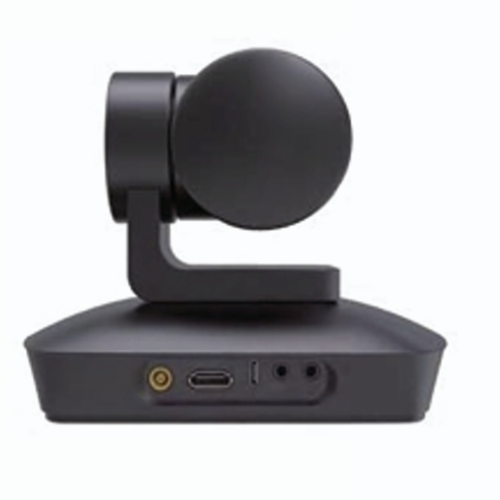

ALVISION 4K Auto-Tracking PTZ Camera

Overview

Specifications

In the Box

Warranty & Support

Key Features

Ultra HD 4K auto-tracking PTZ camera for professional AV applications.
High-performance 1/2.8” Sony CMOS sensor with 8.3 MP resolution.
10X optical zoom for crystal-clear close-up capture.
Intelligent speaker and presenter auto-tracking.
Built-in 4-microphone array with 180° pickup angle.
USB and HDMI output with UVC control support.

Best For

Video conferencing & online meetings

Training halls & lecture capture

Broadcasting & live streaming

Corporate & government meeting rooms

Technical Features	Details
Brand	ALVISION
Model	ALV-PTZ-10X
Image Sensor	1/2.8” Sony CMOS
Effective Pixels	8.3 MP
Minimum Illumination	0.1 Lux (F1.2)
Optical Zoom	10X
Focal Length	5.1 mm – 51.0 mm
Aperture	F1.8 – F2.5
Horizontal FOV	61.5° – 7°
Shutter Speed	1 ~ 1/10000 s
Video Resolution	4K / 1080p / 720p
Frame Rate	Up to 30 fps
Video Format	YUY2 / H.264 / H.265 / MJPEG
Microphone	4-Mic Linear Array
Pickup Distance	Up to 10 m
Pickup Angle	180°
Audio Mode	Full Duplex
Video Output	USB 2.0, HDMI
Pan Range	-170° to +173°
Tilt Range	-30° to +90°
Presets	1 – 9
Power Supply	DC 12V / 2A
Power Consumption	12W (Max)
Operating Temperature	-10°C to +50°C
Dimensions	160.7 × 115.1 × 131.4 mm
Weight	600 g

ALVISION 4K Auto-Tracking PTZ Camera
DC 12V Power Adapter
USB & HDMI Cables
User Manual
Mounting Accessories

1-year manufacturer warranty
Professional technical support

Learn More About ALVISION 4K Auto-Tracking PTZ Camera:

The ALVISION 4K Auto-Tracking PTZ Camera is a professional video solution designed for modern conference rooms, training halls, classrooms, and broadcast environments.

Equipped with a high-performance 1/2.8” Sony CMOS sensor and 10X optical zoom, it delivers sharp, crystal-clear Ultra HD 4K video with accurate color reproduction and smooth motion.

With intelligent speaker and presenter tracking, built-in microphone array, and flexible connectivity options, the camera ensures seamless, hands-free operation for professional AV and conferencing applications.

1. What is the ALVISION 4K Auto-Tracking PTZ Camera?

It is a professional Ultra HD PTZ camera designed for video conferencing, education, training, and broadcasting, featuring intelligent auto-tracking and high-quality 4K output.

2. What image sensor does the camera use?

The camera is equipped with a 1/2.8” Sony CMOS sensor with 8.3 megapixels, ensuring sharp detail and excellent low-light performance.

3. What video resolutions are supported?

It supports 4K, Full HD (1080p), and HD (720p) video output, making it compatible with a wide range of AV and conferencing platforms.

4. How does auto-tracking work?

The camera intelligently detects and follows the active speaker or presenter, automatically adjusting framing without the need for manual control.

5. Does the camera include audio capture?

Yes, it features a built-in 4-microphone linear array with up to 10 meters pickup range and full-duplex audio support for clear voice capture.

6. What connectivity options are available?

The camera supports USB 2.0 and HDMI video output, along with UVC control for easy integration with conferencing systems and displays.

7. Where can the ALVISION PTZ Camera be used?

Ideal for corporate boardrooms, training halls, educational institutions, houses of worship, government meeting rooms, live streaming, and professional broadcast environments.

In-The-Field Use Cases

See how the ALVISION 4K Auto-Tracking PTZ Camera performs across professional environments.

Corporate

Boardrooms & Meetings

Automatically track active speakers and deliver professional-quality video for hybrid and in-room meetings.

Collaboration

Video Conferencing

Education

Lecture Capture & Training

Capture instructors and presenters clearly with intelligent tracking for live streaming and recorded sessions.

Teaching

Streaming

Broadcast

Live Streaming

Deliver smooth, hands-free camera movement with wide pan-tilt coverage for live events and worship services.

Production
