| Technical Features | Details |
|---|---|
| Brand | ALVision |
| Product Name | 4K AI Auto-Tracking PTZ Camera |
| Model | ALV-PTZ-10X/20X/30X |
| Usage | Professional Conference, Education & Broadcast Applications |
| Image Sensor | 1/2.8” CMOS |
| Effective Pixels | 8.5 MP |
| Minimum Illumination | 0.1 Lux |
| Signal System | PAL / NTSC |
| Optical Zoom | 10X / 20X / 30X |
| Focal Length (10X) | 4.2 mm – 42 mm |
| Focal Length (20X) | 5.2 mm – 104 mm |
| Focal Length (30X) | 6.0 mm – 180 mm |
| Horizontal Viewing Angle | 67.5° – 7.6° / 72.5° – 6.57° / 58.7° – 3.2° |
| Shutter Speed | 1/25 – 1/10000 s |
| Focus Mode | Auto / Manual |
| Exposure Control | Auto / Manual |
| Gain | Auto / Manual |
| White Balance | Auto / Indoor / Outdoor / Manual |
| Image Effects | Full Color / Black & White / Image Flip |
| Video Resolution | 4K / 2K / 1080p / 720p |
| Frame Rate | Up to 30 fps |
| Video Compression | MJPEG / H.264 |
| Video Output | USB 3.0 / HDMI / IP |
| Microphone Array | Built-in 4 Digital Microphones |
| Audio Sampling Rate | 16 kHz / 48 kHz |
| Audio Sensitivity | –26 dBFS |
| Voice Pickup Distance | Up to 10 m |
| Pickup Angle | 180° |
| Signal-to-Noise Ratio | 65.5 dB |
| Audio Mode | Full Duplex |
| Pan Range | 340° |
| Tilt Range | –30° to +90° |
| Pan/Tilt Speed | Up to 60° / sec |
| Preset Positions | 9 (Remote) / Up to 200 (PC) |
| Control Interface | RS-232 / RS-422 / USB / IP |
| Control Protocols | VISCA / VISCA over IP / PELCO P/D / ONVIF |
| Power Supply | DC 12V / 2A |
| Power Consumption | Up to 18W |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | –10°C to +60°C |
| Operating Environment | Indoor |
| Dimensions | 181 × 182 × 175 mm |
| Weight | 1525 g |
| Warranty | 1 Year |

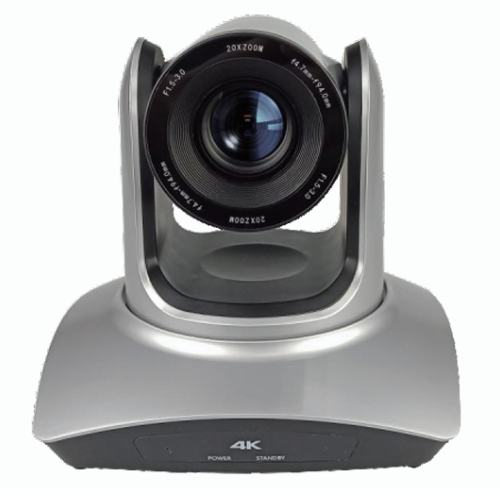

The ALVISION 4K AI Auto-Tracking PTZ Camera is a professional video solution for modern
conference rooms, classrooms, training halls, and broadcast environments.
Featuring 10X, 20X, and 30X optical zoom options and a high-performance 1/2.8” CMOS sensor
with 8.5 MP resolution, it delivers crisp, Ultra HD 4K video with accurate color and smooth motion.
Equipped with AI presenter and voice tracking, a 4-mic array with up to 10m pickup range, and

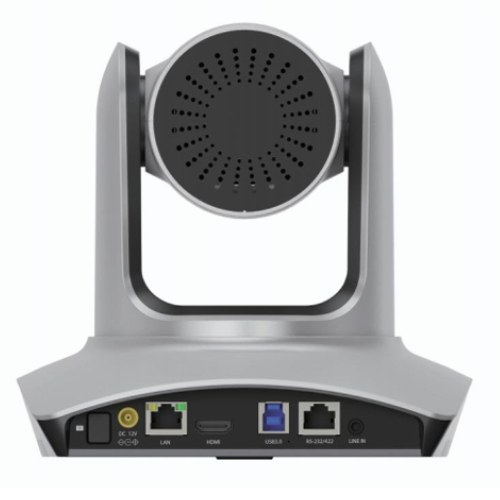

multiple output options including USB 3.0, HDMI, and IP, it enables seamless hands-free operation
for professional AV, conferencing, and broadcast applications.
